Fieldstripping the Stoeger .22 Luger

 The following photographs display the significant steps to fieldstrip this pistol.

1. MAKE CERTAIN THE PISTOL IS UNLOADED!  Pull back the bolt to visually and manually verify that there is no cartridge in the chamber.



2. Remove the magazine.



3. Remove the grips.

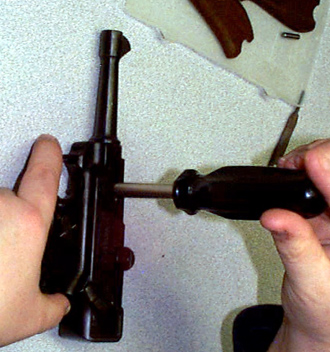

4. Remove the crosspin that fastens the mainspring housing to the frame.



5. Loosen the screw on the left side of the frame.  Don't remove it, just loosen it 2 or 3 turns.



6. Using a punch, press in the spring-loaded plunger at the rear of the frame.  This will allow the action to be removed.



7.  Compress the bolt assembly and begin lifting the entire assembly from the frame.




8. To disassemble the bolt assembly, use a punch to remove the rearmost crosspin from the bolt.  Be ready to catch the spring that will be released when the pin is removed.

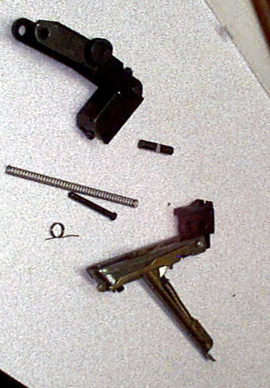

9. The disassembled toggle and bolt.  Further disassembly is not covered here, and should be undertaken with care and great attention to detail, as the Stoeger has a lot of little pins and springs to lose.




Reassembly

1. Insert the crosspin through the toggle assembly.  You will have to reinstall the spring at this point.  The arrows below illustrate the surfaces against which the spring legs will contact.



2. Force the spring into place, and push the pin the rest of the way (from underneath) when you have the spring where you want it.


3.  The toggle and bolt assembly is ready to be placed in the frame.  Note the draw bar below has a hole in it.  This hole mates up with the projection on the left top of the trigger.

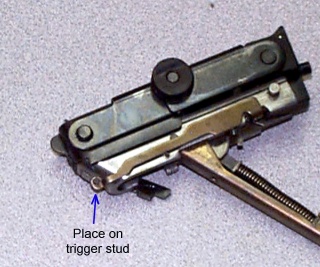

Here I'm pointing to the trigger stud which will hook into the drawbar.  You can also see the screw (which you loosened in Step 5) on the left side of the frame which will be tightened down to keep the drawbar in place.



4. From here, you can simply reverse the order of disassembly to get your Luger back together.  There really isn't much else to it.
